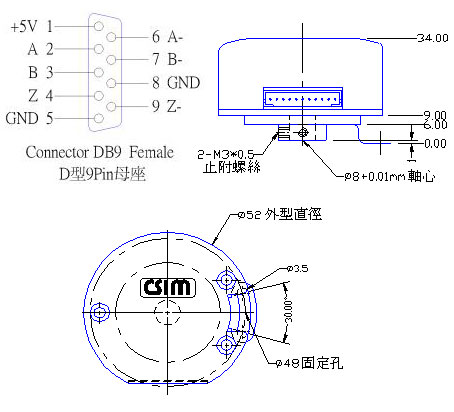

| 型 號 Type |
CSE-2000 |
| 供應電源 Power Supply |
DC5V(fixed) |
| 消耗電源 Current Consumption |
≦60MA |
| 檢測系統 Detecdtion System |
Incremental 光學增量型 |
| 解析值/每轉 Count/Revoluton |
2000 |
1600 |
| 輸出相 Output Phase |
AA-,BB-,ZZ |
AA-,BB |
| Output Wave |
Line Driver輸出 |
| 最大向應頻率 Max Frequency |
30kHz |
| 相位差 Phase Different |
AB Phase Different 90°±45°(T/4±T/8) |
| 保護等級 Protection |
Dust Proof 一般防塵 |
| 重量 Weigh |
≦100g |
|
|
