精密行星減速機 |
| |
| |
 |
| |
 |
|
| |
|
SB / RB系列規格
減速比(Ratio Table of Gear Reducer): |
| 型號(Model No.)\段數(Stage No.) |
L1 |
L2 |
L3 |
SB60
SB90 |
3,4,5,7,10 |
9,12,15,16,20,21,25,28,
30,35,40,49,50,70,100 |
36,45,60,
75,80,120 |
|
|
| 型號\型號 |
連續出力轉矩
(kgf*m) |
最大出力轉矩
(kgf*m) |
出力軸容許徑向力(kgf) |
慣性矩
(單一速比) (kg*cm2) |
人力軸孔徑
(mm) |
L1量(kg) |
L2量(kg) |
| SB60 |
1.5 |
3 |
60 |
0.306 |
3~11 |
1.1 |
1.4 |
| SB90 |
7 |
14 |
150 |
0.73 |
8~19 |
3.6 |
4.9 |
|
 |
| |
A |
Bh7 |
C |
D |
E |
G |
H |
J |
Kh6 |
M |
N |
a |
B |
i |
L1 |
L2 |
L3 |

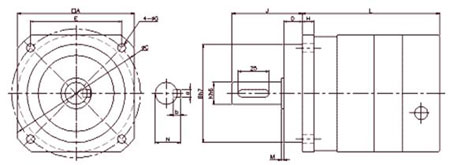

| SB90 |
9.5 |
80 |
105 |
15 |
74.2 |
4*6.8 |
10 |
57 |
18 |
2 |
20.5 |
6 |
6 |
25 |
109.5 |
137 |
164.5 |
|
|
| |
 |
| |
A |
Bh7 |
C |
D |
G |
J |
Kh6 |
M |
N |
a |
B |
i |
L1 |
L2 |
L3 |
|

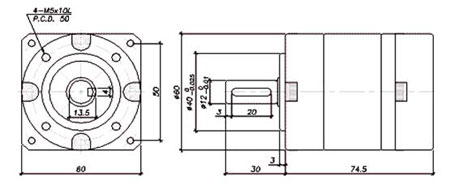

SB60 |
60 |
40 |
50 |
3 |
M5*10L |
30 |
12 |
1 |
13.5 |
4 |
4 |
20 |
74.5 |
93 |
111.5 |
|
|
